Description

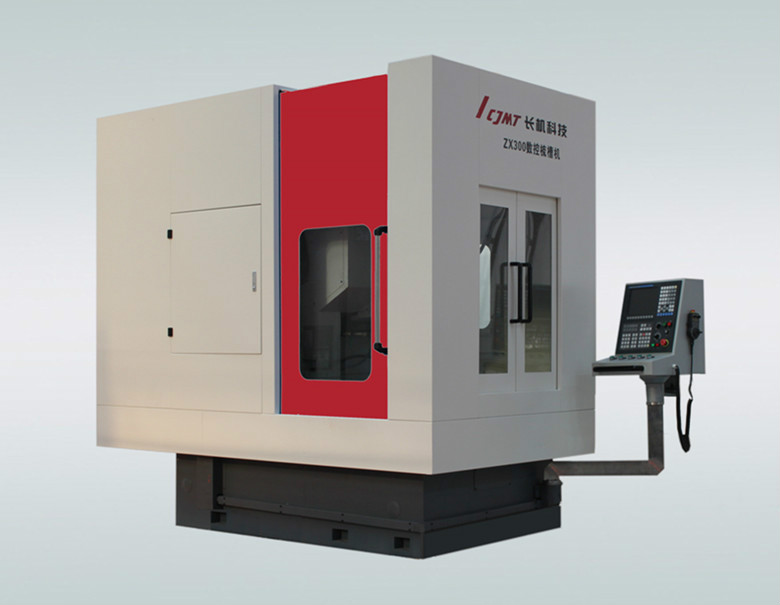

This machine is designed to machining the cogging of radical gear shaving cutter and axial shaving cutter, that is the processing equipment of combing small groove in tooth side.
The machine uses fully open programming methods to reserve programming interfaces for machining the amount of dislocation of normal small groove in shaving cutter, dislocation way, helical heads and trans-number of teeth, changes in different helix starting position, etc. Users can compile machining program by their own process parameters and methods.
|
Specifications |
ZX300 |
ZX300A |
|
Max.dia.of workpiece（mm） |
300 |
300 |
|
Min.dia.of workpiece（mm） |
100 |
100 |
|
Max. module（mm） |
7 |
7 |
|
Min.module（mm） |
1 |
1 |
|
Max.face width（mm） |
50 |
50 |
|
Spindle stroke（str/min） |
100~600 |
100~600 |
|
Amount of cutter reliving（mm） |
0.03 |
0.03 |
|
Pulling stroke of tool holder（mm） |
– |
100 |
|
The amount of dislocation between adjacent slot（mm） |
0~任意 |
0~任意 |
|
Helical heads（mm/min） |
1~任意 |
1~任意 |
|
Increment of adjacent helix starting position（mm） |
0~任意 |
0~任意 |
|
Total power（kw） |
15.2 |
20 |
|
Total weight（Kg） approx. |
9000 |
11000 |
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
| Standard Accessories |
| CNC system: 828D Siemens |
| Spindle frequency inverter: Schneider |
| One set hydraulic station: Outside |
| One set cooling and chip conveyor: Outside |
| Centralized lubrication device: Batch-type |
| Electrical cabinet: Outside |
| Half cover |
| Accessory box |
| Sizing block |
| Optional Accessories |
| Special cutter arbor |
| Helical guide |
| Cutter relieving cam |
| Full cover |
