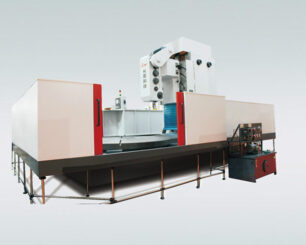

Description
It’s mainly used for machining disc-type internal or external cylindrical gear and helical gear.
Main movement of the machine is driven by AC inverter motor with stepless speed regulating.
Both circular feed(X axis) and radial feed (C1 or C2 axis) are driven by AC servo motor.
The machine is energy saving CNC gear shaper, and with the features of reasonable layout, compact structure, small area, easy operation and maintenance.
| Specifications | YKS5132J | YKH5132J | YKD5132J |
| Max.diameter of external（mm） | 320 | 320 | 320 |
| Max.diameter of internal（mm） | 220+D刀 | 220+D刀 | 220+D刀 |
| Max.module（mm） | 8 | 8 | 8 |
| Max.face width（mm） | 90 | 90 | 90 |
| Max.stroke length（mm） | 100 | 100 | 100 |
| Stroke speed（str/min） | 150～1000 | 150～1000 | 150～1000 |
| Cutter relieving（mm） | ≥0.3 | ≥0.3 | ≥0.3 |
| Axial slide travel range of cutter head | – | – | – |
| Adjusting amount of stroke position（mm） | 30 | 30 | 30 |
| Spindle diameter（mm） | 85 | 85 | 85 |
| Diameter of worktable（mm） | 300 | 300 | 250 |
| Sloping angle of worktable | – | – | ±12° |
| Distance between axis of cutter spindle and worktable （mm） | -110～265 | -110～265 | -110～265 |
| Distance between the nose of spindle and worktable surface（mm） | 135～265 | 115～245 | 135～265 |
| Total power（kw） | 13.3 | 13.2 | 13.3 |
| Total weight（Kg） approx. | 4500 | 4500 | 4500 |
Note: The above mentioned parameters for your reference only. If have (any requires) Please contact us.
| Standard Accessories |
| Numerical control system: 808D Siemens |
| Spindle frequency inverter: The British Witten |
| One set hydraulic device: Internal |
| One set cooling and chip conveyor: Internal |
| Electric cabinet: Internal |
| Standard cutter adaptor: Morse 4# 2 pieces |
| Accessory box |
| Machine sizing block |
| Optional Accessories |
| Fixture |
| Iron block for column increase |
| Special cutter adaptor |
| Gear shaper tools |
| The helical guide |
| Automatic loading and unloading mechanism |
